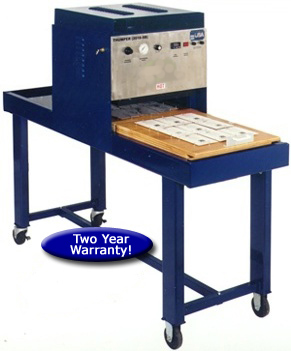

Blister Sealer

Model 2018-SB


Specifications *

DIMENSIONS:
Length....................68-1/4" (173.36 cm)
Overall Height.......54-3/4" (139.07 cm)
Working Height......34-7/8" (88.58 cm)
Width.....................22-5/16" (56.67 cm)
Platen (PTFE Coated...............20"x18"
                           (50.80 cm x 45.72 cm)
Sealing Station Jig..23"L x 19-3/16"W
                           (58.42 cm x 48.74 cm)
Maximum Blister Depth..6" (15.24 cm)

Speed.........Up to 10 cycles per minute
Power......220/1/60-50 cycles, 20 amps
Finish...............................Powder Coat
Casters.4" Dia. Lkng Whls (10.16 cm)
Shipping Weight......200 lbs. (90.9 kg)



Ideal for drugstores, hospital pharmacies and for packaging products for clinical trials and samples.


Features and Specifications


Digital heat control. Heavy-gauge welded steel
construction.
PTFE-coated platen. Solid state controls throughout.
Air pressure gauge and regulator. Photo electric activated platen.
