Vacuum Chambers

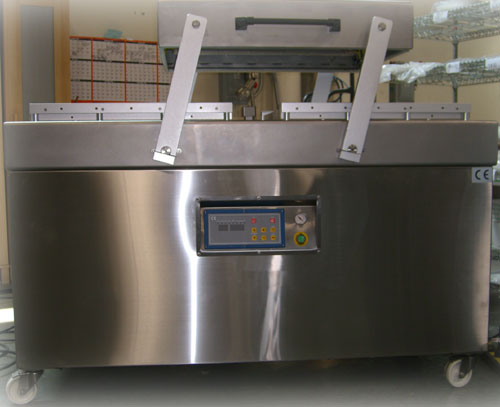

DC-640-FB

 Ideal for all medical, electronic, food
and industrial applications!

Features:
Durable Stainless Steel Construction
Flat deck design
10mm wide seals
NEMA 4 programmable control panel
NEMA 4 electrical enclosures
Soft air ventilation
Bladder activated sealing
Eight high density plastic filler plates
Pump overload warning indicator
Oil change indicator
Vacuum sensor & display
Heavy duty casters
Air assist

Option:
Pump size
Electricity
Gas Flush Kit
Air regulator
Mechanical knife cut-off
Top & bottom seal
Chamber size


Technical Data Sheet:
Sealing length: 25.2"*4/640mm
Chamber depth: 8"/200mm
Chamber size: 32"/808mm(L)/ 29"/730mm(W)
Sealing bar distance: 22" /650mm
Vacuum pump capacity: 63m3/h(3hp)
Cycle time: 10-25 Sec
Machine size: Coming Soon
Voltage: 230v/3ph/60Hz(Other voltages available)
Power: 3.0 kw/14A
Weight: 836 lbs.(380kg);
