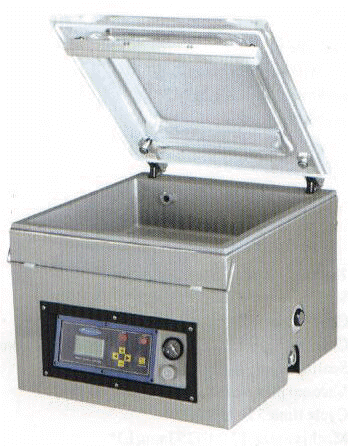

Vacuum Chambers



Ideal for all medical, electronic, food
and industrial applications!


Features:
Polished 316 Stainless Steel Construction
Removable sealing bar
Transparent Lid
Stainless steel housing
BUSCH vacuum pump
Available with PLC/TouchScreen for all Medical Applications

Options:
Sensor control
Gas flushing
Soft air

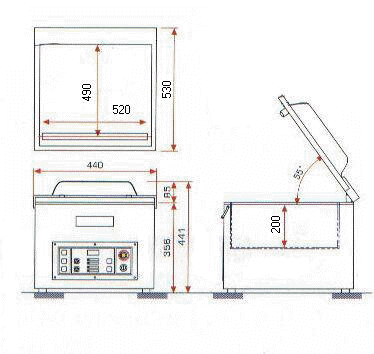

Technical Data Sheet :
Sealing length: 20.4" (520mm)*1
Chamber height: 7.87" (200mm)
Chamber size: 20.87" (530mm) x 20.87" (530mm) (L x W)
Sealing bar distance:19.29" (490mm)
Vacuum pump capacity:21m3/h
Cycle Time: 10-25 Sec
Machine size: 21.69" (550mm) x 21.69" (550mm) x 22" (559mm) (L x W x H)
Voltage: 110v or 220v
Power: 1.6kw
Weight: 209 lbs (56.8 kg)
