ALINESYS.com B.A.S.S. Scissor Sealer



Click for Aline Bags

All Aline vacuum sealers come with a ONE YEAR WARRANTY!

The ALINESYS.com Model B.A.S.S. is an unobstructed seal jaw available in 15, 20, 25 and 30-inch seal lengths. The unique cantilever design makes this ideal for applications such as:



1) Fabrication of belts or filters.

2) Splicing rolls of foam or fabric where a continuous web is required.

3) Sealing box liners or valves of large chemical or food bags.

4) Bag out operations.


Each sealer is freestanding with an option for lock down casters which allow for ease of transportation inside your facility. The machine is adjustable for a sealing height of approximately 40-72 inches from the floor.

Our unique Aline sealing head can be pivoted within a 180-degree range. Controls are pneumatic and push button or foot pedal activation is available.

Options include:

• Temperature controls
• Dual elements
• Hot or cold wire cutoff
• Choice of seal element width
• Seal bars drilled for water cooling
• Water chiller
• 110 or 220 volts

Available in 15, 20, 25 and 30 inch lengths!

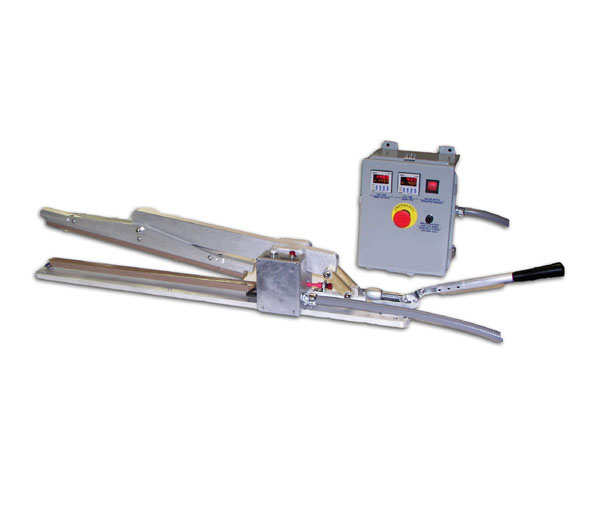

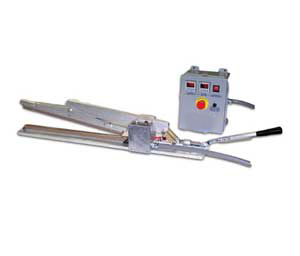

Aline Manual Heavy Duty Scissor Sealer

Aline Manual Heavy Duty Scissor Sealer

Click for larger image

Click for larger image
