Vacuum Chambers
DC-860B-FB Vacuum Chamber

 Ideal for all medical, electronic, food
and industrial vacuum chamber applications!

The ALINESYS.com DC-860B-FB vacuum chamber features polished 315 stainless steel construction, a flat vacuum chamber for easy cleaning and a 10 program LCD control system!

The durable aluminum sealing bar and BOSCH vacuum pump make this industrial vacuum chamber ideal for all industrial, medical and production vacuum chamber applications.

Only Aline offers a programmable LCD/Touchscreen option to further enhance the profitability of your vacuum chamber while providing for un-equaled reliability, serviceability and value.

All Aline vacuum chambers are backed by a one-year warranty and the knowledge that each chamber has been designed and engineered to provide lasting value and long service life for your vacuum chamber applications!

* Polished 316 Stainless Steel
* Flat chamber for easy
* Bladder activated sealing
* 10 program LCD control
* Water proof (IP65) LCD
   control panel
* Water-resistant(IP65)
   electrical box
* Durable aluminum sealing bar
* BUSCH vacuum pump
* Available with
   PLC/TouchScreen for all
   Medical Applications

Sensor control
Gas flushing
High pressure seal
Double sealing bar (Top and bottom seal)
Automatic lid transfer system
Soft air
Double Seal Wire

Technical Data Sheet :
Sealing length: 33.86" (860mm) *4
Chamber height: 12" (300mm)
Chamber size: 40.9" (1040mm) x 38.3" (975mm) (L x W)
Sealing bar distance: 34" (860mm)
Vacuum pump capacity: 250m3/h
Cycle Time: 10-25 Sec
Machine size: 78.74" (2022mm) x 39.37" (1165mm) x 48.42" (1210mm) (L x W x H)
Voltage: 240 / 480 3PH
(Other voltages are available on request)
Power: 7.0kw
Weight: 1764 lbs (800kg)

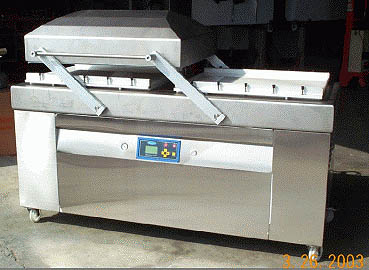

 Aline DC-860B-FB vacuum chamber

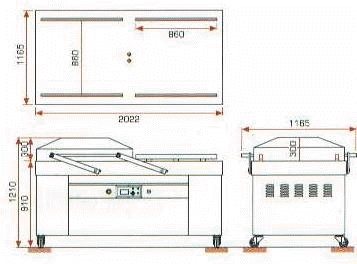

Aline DC-860B-FB vacuum chamber schematics
