Vacuum Chambers

The ALINESYS.com TC-420

Ideal for all medical, electronic, food
and industrial vacuum chamber applications!

The ALINESYS.com TC-420 vacuum chamber features a polished 316 stainless steel exterior and a removable sealing bar.  These key features along with the transparent lid make this vacuum chamber easy to operate and easy to maintain!  Key usability features include a BOSCH pump and a stainless steel housing.

Another ALINESYS.com Heat Seal exclusive is the availability of PLC/Touchscreen controls for all Medical Vacuum chamber applications, allowing for programmability and flexibility unavailable through other vacuum chamber manufacturers.

When it comes to high availability vacuum chambers, for clean room, medical or heavy duty industrial use, ALINESYS.com Heat Seal is the vacuum chamber manufacturer you can count on to deliver the performance, price and profitability you need.

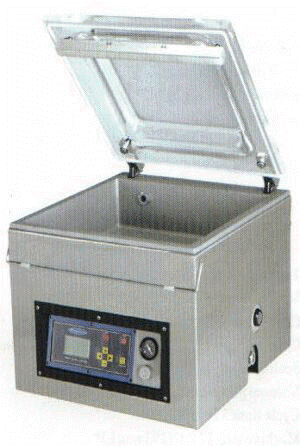

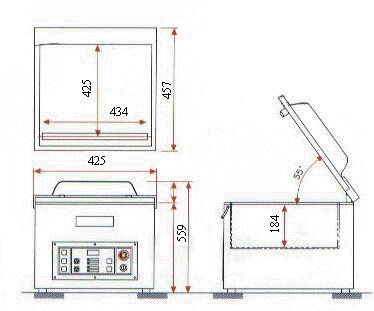

Aline TC-420 vacuum chamber-DIMENSIONS Aline TC-420 vacuum chamber
TC-420 Vacuum Chamber Features:
Polished 316 Stainless Steel Construction
Removable sealing bar
Transparent Lid
Stainless steel housing
BUSCH vacuum pump
Available with PLC/TouchScreen for all Medical Applications

TC-420 Vacuum Chamber Options:
Sensor control
Gas flushing
Soft air

TC-420 Vacuum Chamber Technical Data Sheet :
Sealing length: 17" (434mm)*1
Chamber height: 7.25" (184mm)
Chamber size: 18.5" (470mm) (L) x 18" (457mm) (W)
Sealing bar distance:16.75" (425mm)
Vacuum pump capacity:21m3/h
Cycle Time: 10-25 Sec
Machine size: 17.75" (451mm) x 16.75" (425mm) x 22" (559mm) (L x W x H)
Voltage: 110v or 220
Power: 1.6kw
Weight: 154 lbs (50 kg)
