Vacuum Sealers

AVS Vacuum Sealer

Click here for Universal Stand Picture Click for Aline Bags Click here for ONE YEAR WARRANTY
click to see AVS video click to view Vertical Impulse Sealer Video
AVS Video Small Compression Table Video Large Compression Table Video Vertical Impulse
Sealer Video

ALINESYS.com is extremely pleased to offer the unequalled
AVS Series of Table Top Vacuum Sealers.


The AVS VACUUM SEALER is designed with industrial components to provide you with a heavy duty machine that will last for years
and even DECADES!

ALL seals are guaranteed to be airtight and watertight, making the AVS Vacuum Sealers ideal for food, medical and electronic applications.  The integrity of each seal  of our vacuum sealers is accomplished thorough the use of dual 1/4" NiChrome seal bands combined with variable range timers which provide the user with extreme control over seal and cool time.  This combination assures faster vacuum seals and outstanding seal integrity.

As with all ALINESYS.com vacuum sealer equipment, safety and ease of use are a paramount concern.  Each vacuum seal bar is designed with a low pressure descent preventing any possibility of harm to the operator.  ALL vacuum sealer UNITS are virtually maintenance free and require minimal operator training prior to use.  Changeover of components such as heating elements and PTFE tape require only minutes to complete.

With ALINESYS.com's extensive experience in thermal heat sealing and vacuum sealer technology, we stand ready to customize highly specialized applications.  Vacuum sealer packages including chambers, can be incorporated into our line of heavy duty sealers or custom contour vacuum sealers.

STANDARD FEATURES:

  • VARIABLE VACUUM, GAS, HEAT AND COOL TIMERS

  • DUAL 1/4 INCH NICHROME BANDS

  • LOW PRESSURE SAFETY DESCENT

  • DUAL RETRACTABLE STAINLESS STEEL NOZZLES

  • CHOICE OF VACUUM, GAS & SEAL; OR GAS, VACUUM & SEAL

  • FOOT PEDAL ACTIVATED

  • ADJUSTABLE ANGLE SHELF

  • CLEAN ROOM COMPATIBLE

  • EXHAUST PORT

  • PNEUMATICALLY OPERATED

  • HIGH AND LOW PRESSURE GAUGES WITH REGULATOR

STANDARD SPECIFICATIONS:

  • 20 OR 30 INCH SEAL BAR

  • MAX VACUUM: 26HG

  • AIR CONSUMPTION: 7SCFM @ 80PSI

  • 110 VOLTS/10 AMPS

  • WEIGHT: 70 POUNDS

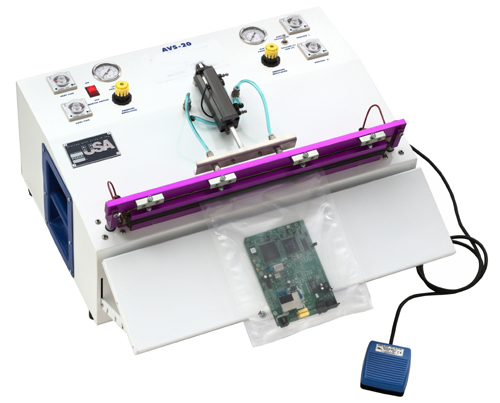

AVS-20 vacuum sealer
click to enlarge

Available in 20 or 30 Inch Lengths
vacuum sealer from Aline Heat Seal

vertical vacuum sealer from Aline Heat Seal
100 inch vertical vacuum sealer!

Heavy Duty Horizontal Bag Sealer

Heavy Duty Vertical Bag Sealer with Vacuum
Heavy Duty Horizontal vacuum Bag Sealer with vacuum



explosion proof vertical sealer
Explosion Proof Vertical Vacuum Sealer
Available in all sizes
